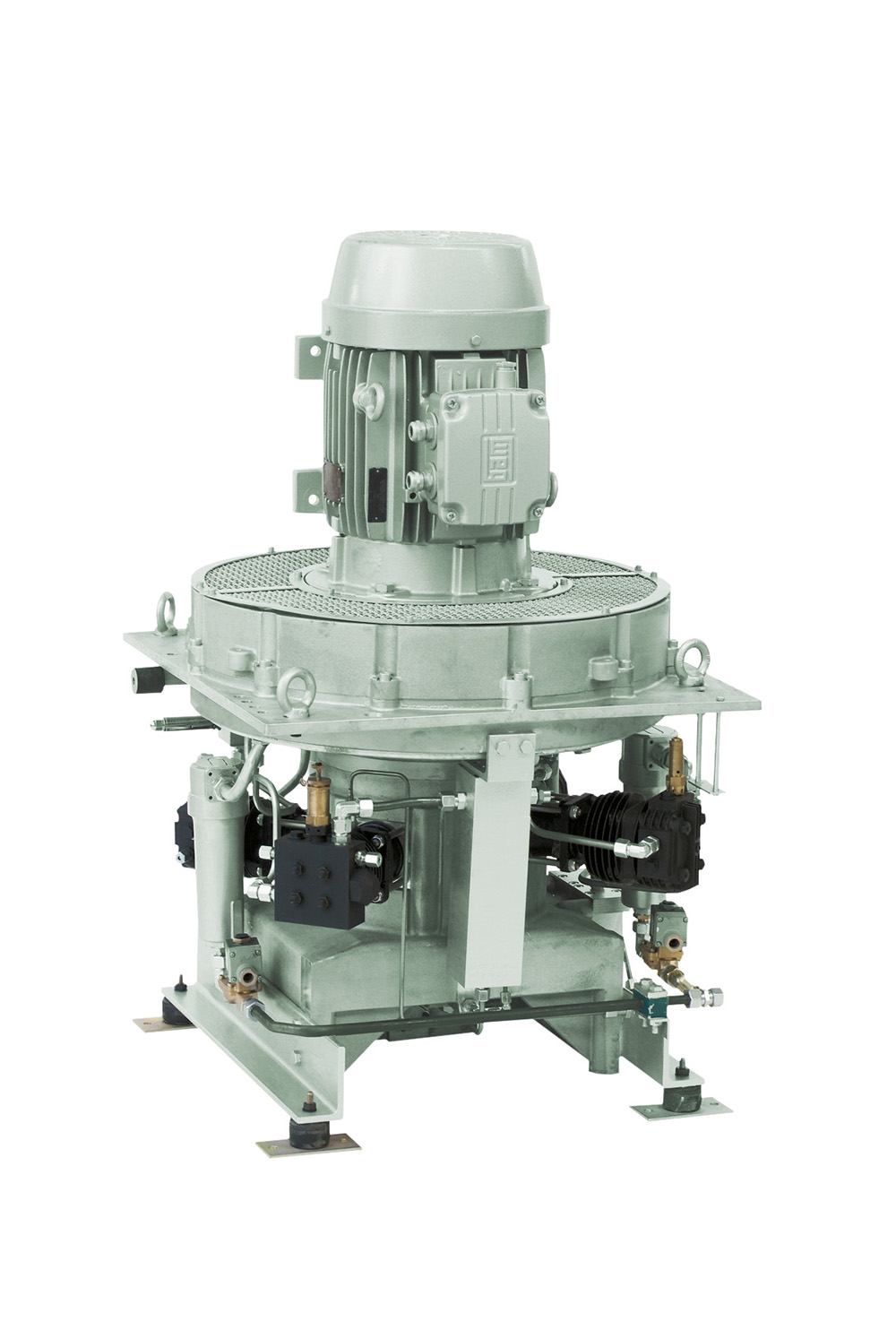

Oil Injected High Pressure Piston Compressors for Gases Sauer TORNADO
Brand
SAUER
Service phone
Pressure: 150–400 barg
Suction pressure: max. 5 barg
Flow rate: 10–25 m³/h
Rated power: 5.5–15 kW
Medium: Air, Nitrogen, Hydrogen, Natural Gas, Biomethane
The Tornado series of air-cooled high-pressure compressors combine a compact design with maximum efficiency and final pressures up to 400 bar, thanks to their vertical design.
Key features:
Total compression divided into 3 or 4 independent stages – better cylinder cooling, lower oil consumption
High-efficiency cooling fan for lower operating temperatures and reduced maintenance
Vertical design – footprint less than 0.5 m²
Low maintenance requirements – at intervals of 2,500 hours
Heavy-duty rigid flange connection between the motor and the compressor
Each compressor is delivered with:
General inspection of the compressor at final pressure, including the 3.1 inspection certificate
Long service life with guaranteed availability of spare parts (for at least 25 years) in stock
TypeStagesFinal pressure (barg)Max. volume flow rate * @50 Hz (m³/h)Max. volume flow rate * @60 Hz (m³/h)
| SAUER Tornado WP3215 | 3 | 350 | 14,2 | 17 |
| SAUER Tornado WP3325 B3-5 | 3 | 350 | 21 | 25 |
| SAUER Tornado WP4325 | 4 | 400 (He: 230) | 19,2 (16) | 23 (19) |
